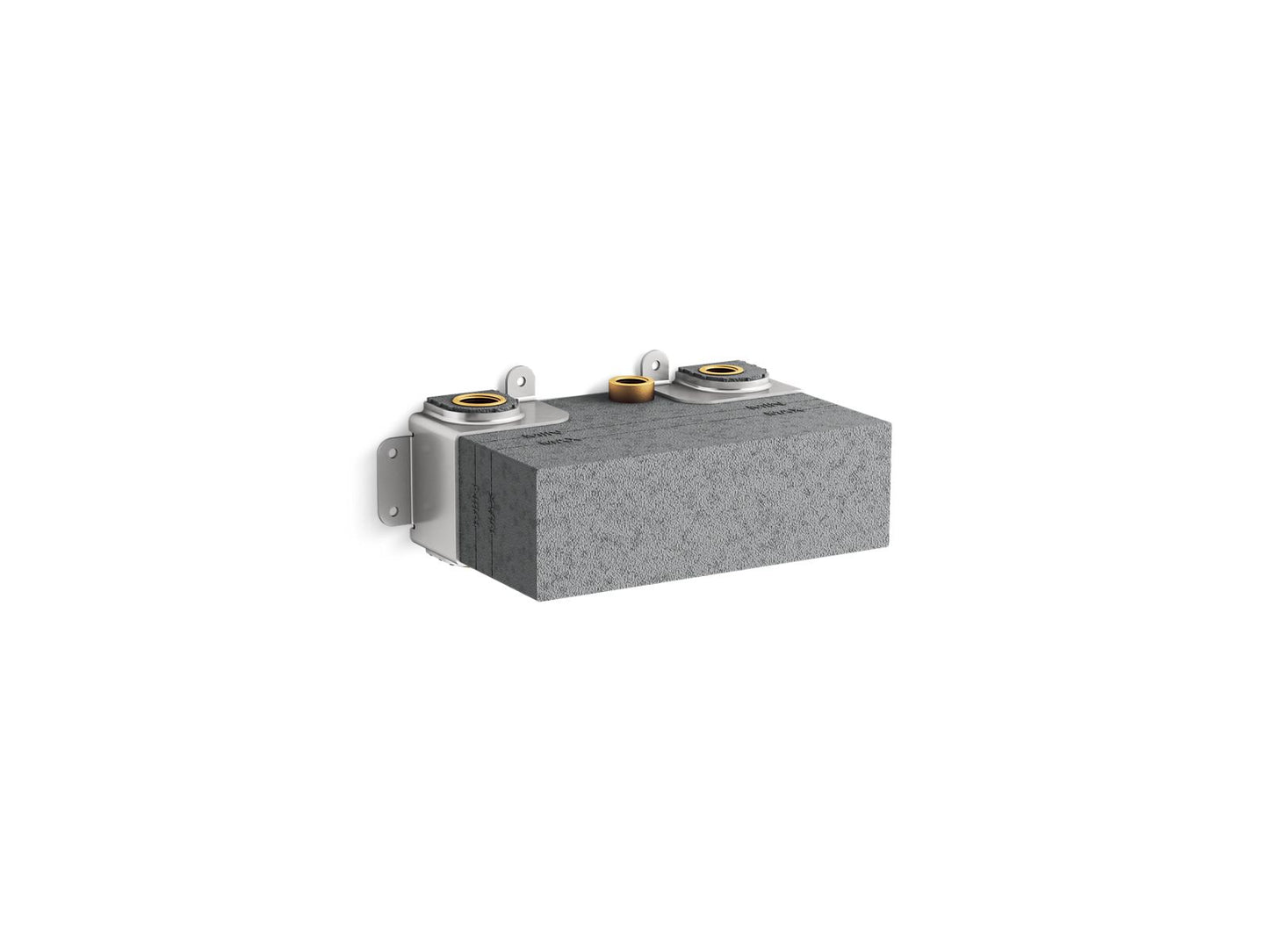

KOHLER K-26340 Anthem Two-port recessed mechanical thermostatic valve
KOHLER K-26340 Anthem Two-port recessed mechanical thermostatic valve
SKU:
SKU:K-26340-NA
Regular price
$425.25
Regular price
$567.00
Sale price
$425.25
Unit price
/
per
Shipping calculated at checkout.
66 in stock
Couldn't load pickup availability
Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With two independently controllable ports, this valve is ideally suited for applications where one or two shower outlets are required.
- High-flow thermostatic mixing valve
- Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
- Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
- 3/4" female NPT inlet connections
- 1/2" female NPT outlets
- Service stops with integral filters
- Antiscald protection
- Integrated adjustable high-temperature limit stop to control maximum water temperature
- Adjustable comForte setting (preset at approximately 104°F)
- Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
Additional Resources:
Spec Sheet
Installation Instructions
