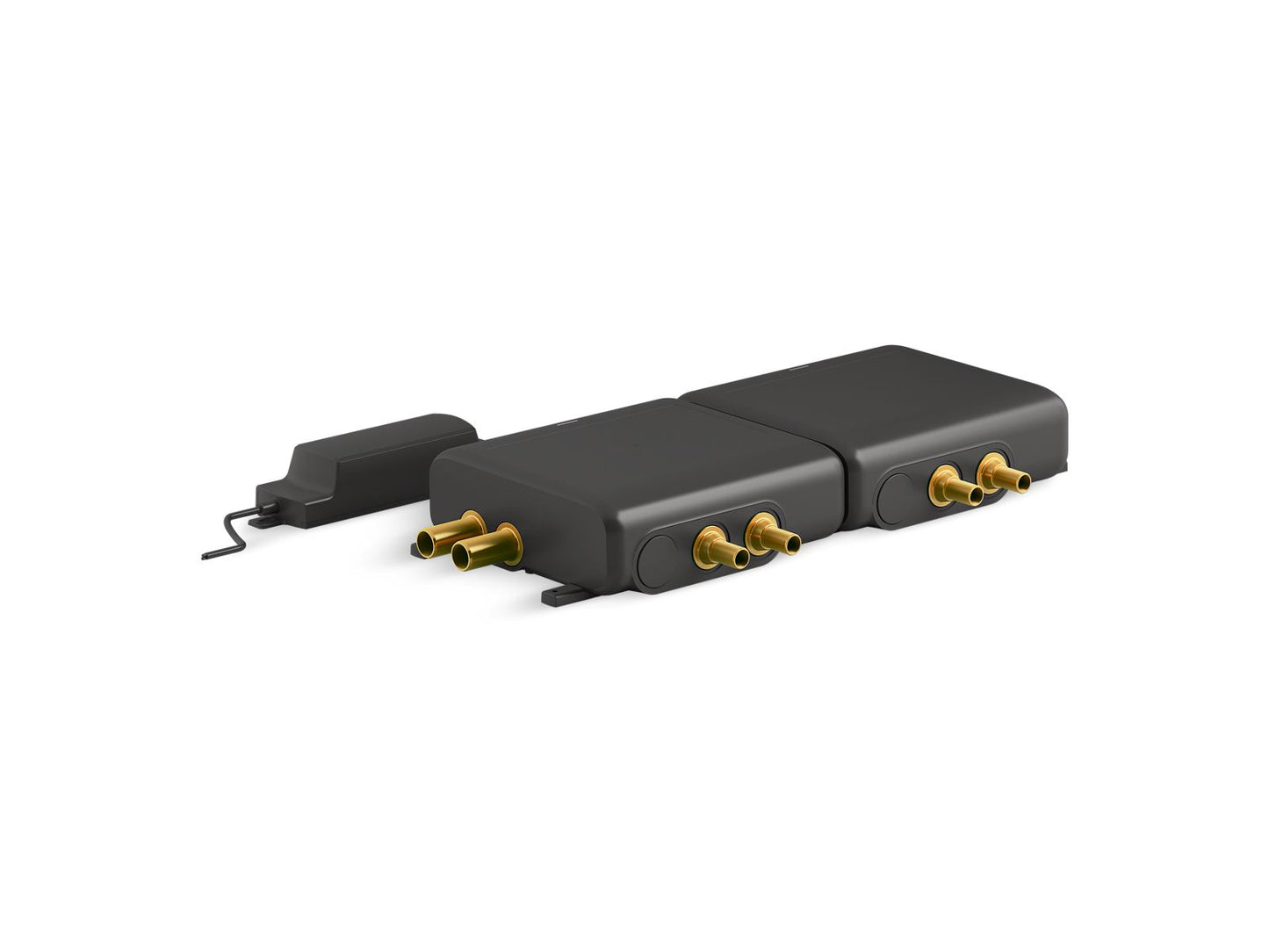

KOHLER K-28211 Anthem Four-port digital thermostatic valve

Digital thermostatic technology provides accurate, precise, and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With four independently controllable outlet ports, this valve is ideally suited for applications where four shower outlets are required, offering two different temperature and flow zones. Optional built-in eco mode lets you use just one outlet at a time to conserve water.

• Digitally controlled thermostatic mixing valve
• Antiscald protection
• Built-in temperature and flow control
• Allows for two different temperature and flow zones in your shower
• Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
• Use with the KOHLER Konnect app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Up to 22 gpm (83 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
• Four independently controllable 1/2" outlets with brass tube connections
• 3/4" inlets with brass tube connections
