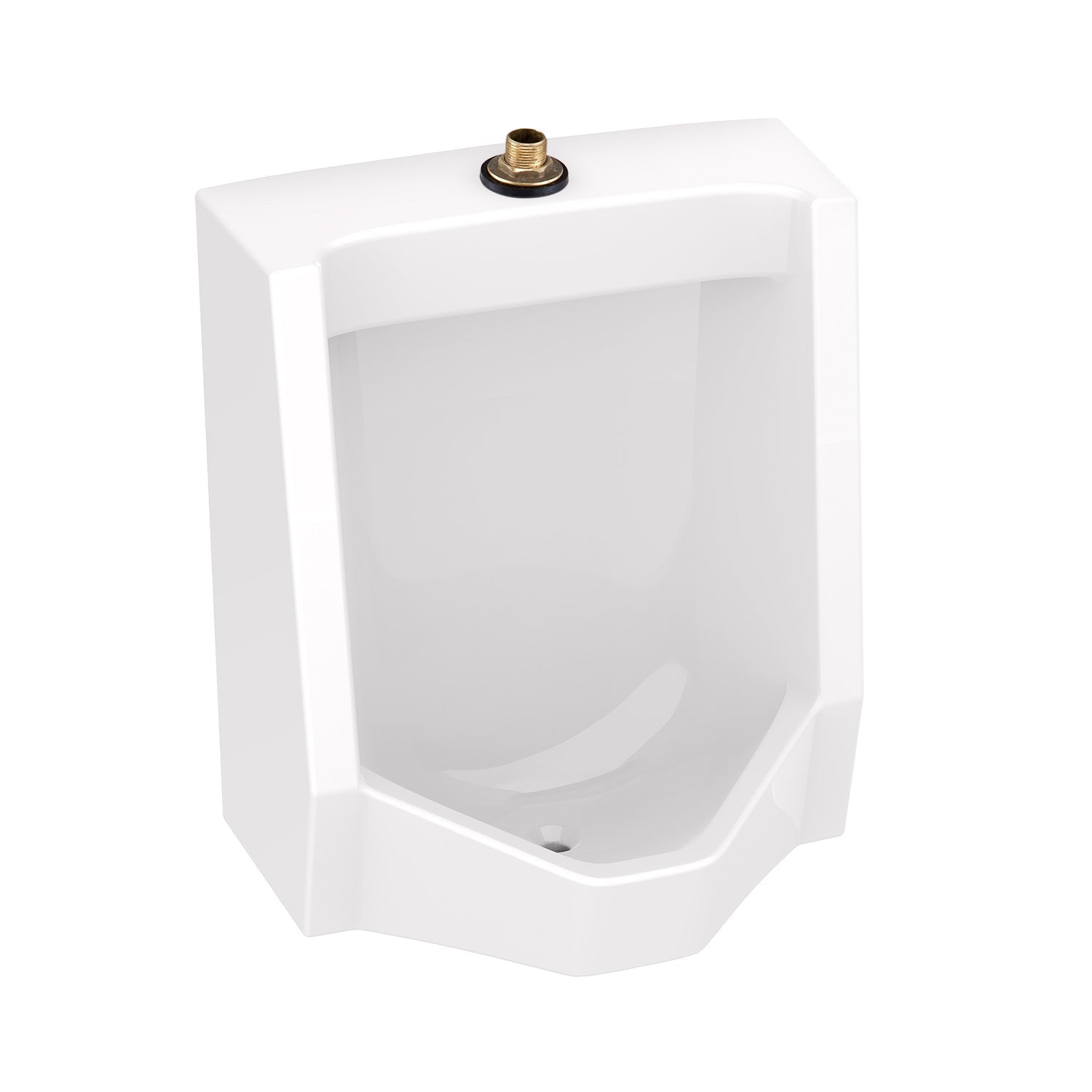

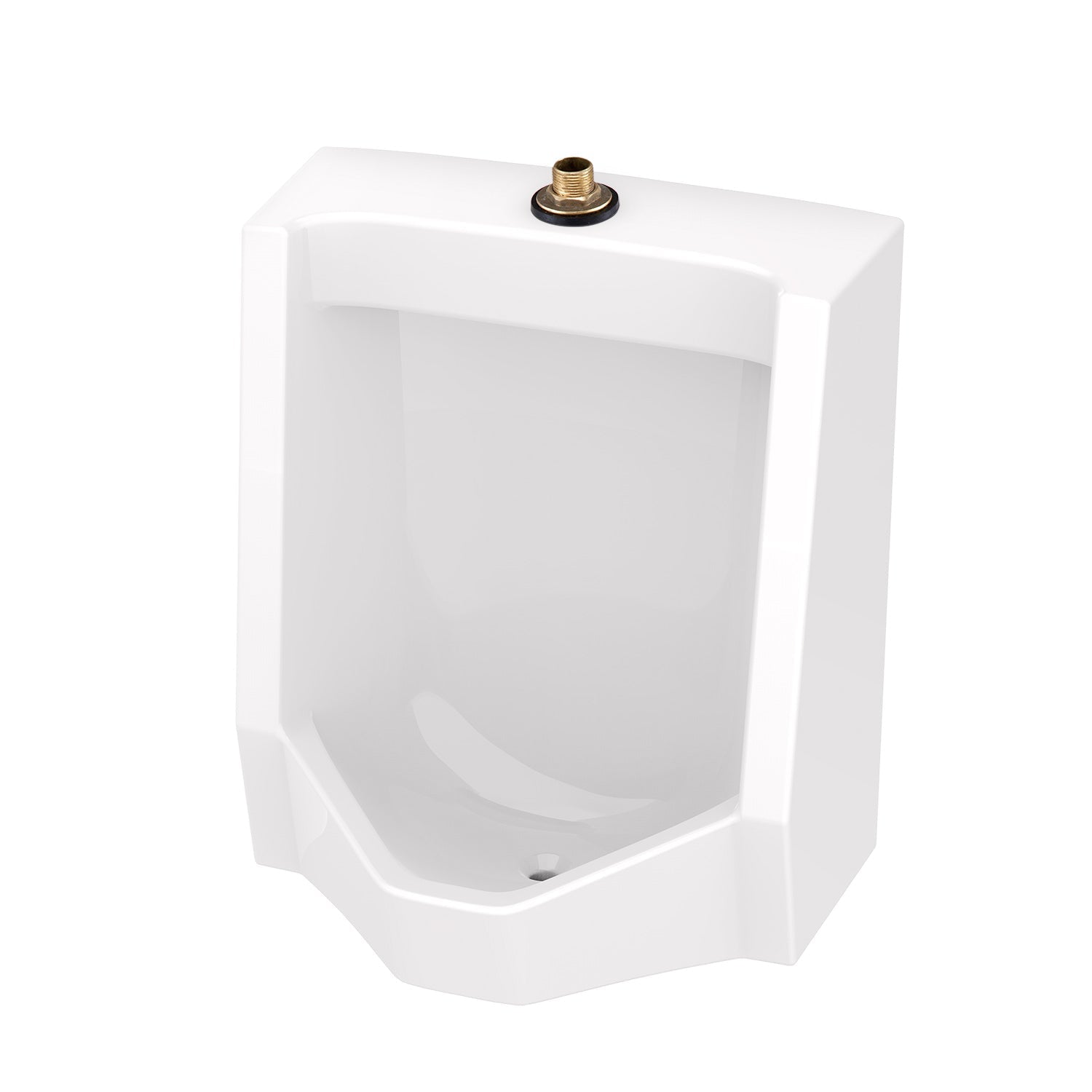

Gerber GHE27800 Monitor 0.125/0.5/1.0 gpf Urinal Washout Top Spud Full Stall White

In busy public or commercial washrooms, Gerber urinals are installed for efficiency and ease of cleaning. They offer the advantages of substantial water savings and takes less space than traditional toilets. The Lafayette urinal offers three flush volumes 0.125 & 0.5, & 1.0gpf, when used with the appropriate flush valve.

• High Efficiency Pint Urinal 0.125GPF, 0.5GPF,and 1.0GPF (0.5LPF, 1.9LPF, and 3.8LPF) when used with the appropriate flush valve
• Elongated rim (14" for finished wall)
• Washout flushing system
• Dual Wall hangers included (GA715017-GEG1)
• 3/4" Inlet Top Spud for Exposed Flushometer
• Outlet connection Threaded 2" Inside (NPTF)
• Replacement Outlet (99-160)
• Dimensions: 29" L x 19.75" W x 12.625" H
• WaterSense Certified
• ADA Compliant
• Limited Lifetime Warranty

Resources: Specification Sheet | Installation Guide | Parts Diagram
