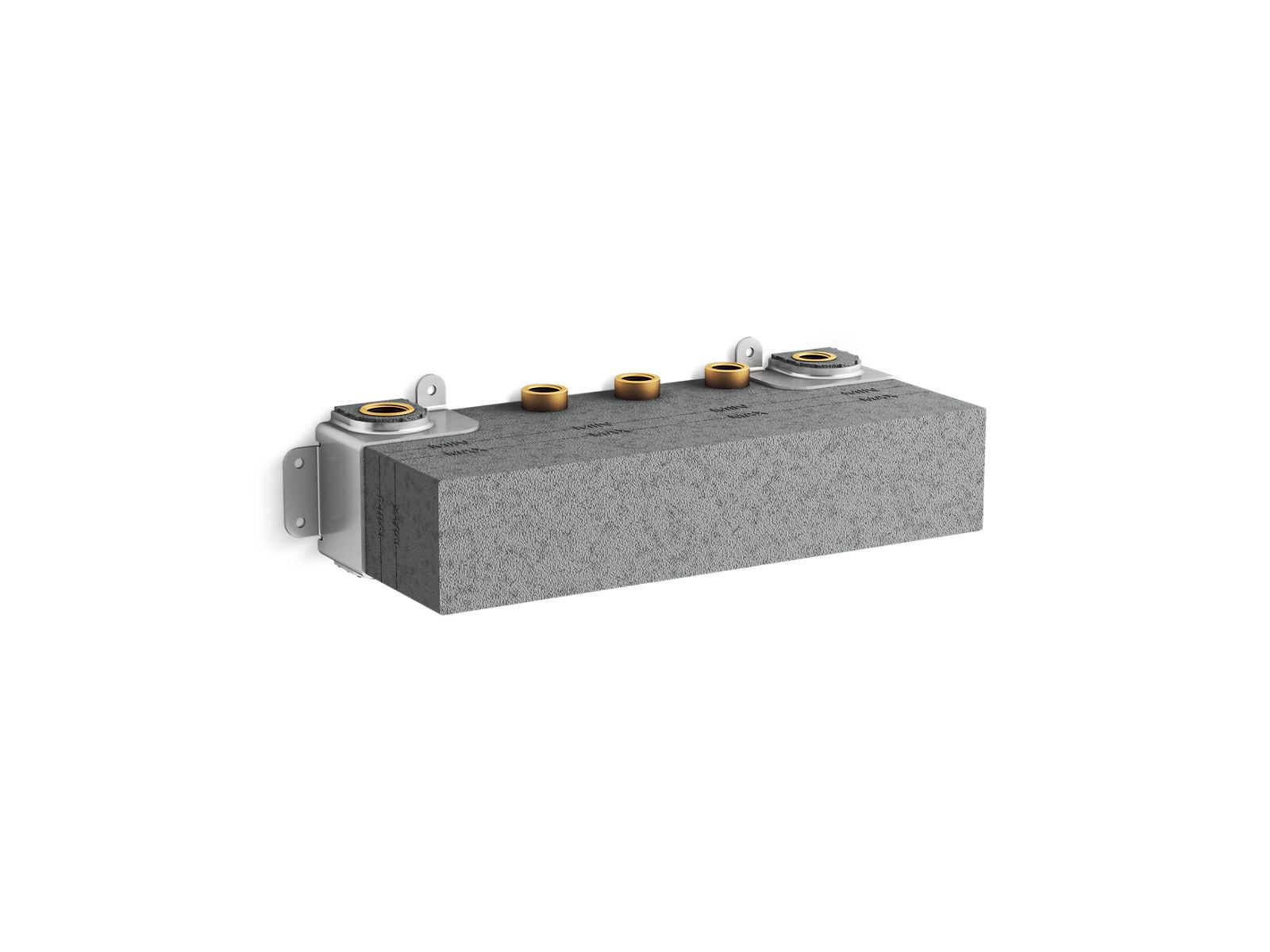

Kallista P34725-00 Kallista Recessed Mech Th Valve 4Ot

Kallista Recessed Mech Th Valve 4Ot

• High-flow thermostatic mixing valve
• Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
• Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
• 3/4" female NPT inlet connections
• 1/2" female NPT outlet connections
• Service stops with integral filters
• Antiscald protection
• Integrated adjustable high-temperature limit stop to control maximum water temperature
• Adjustable comfort setting (preset at approximately 104°F)
• Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
• Dimensions: 18.938 x 8.5 x 7.625 in
• Weight: 11.87 lb
