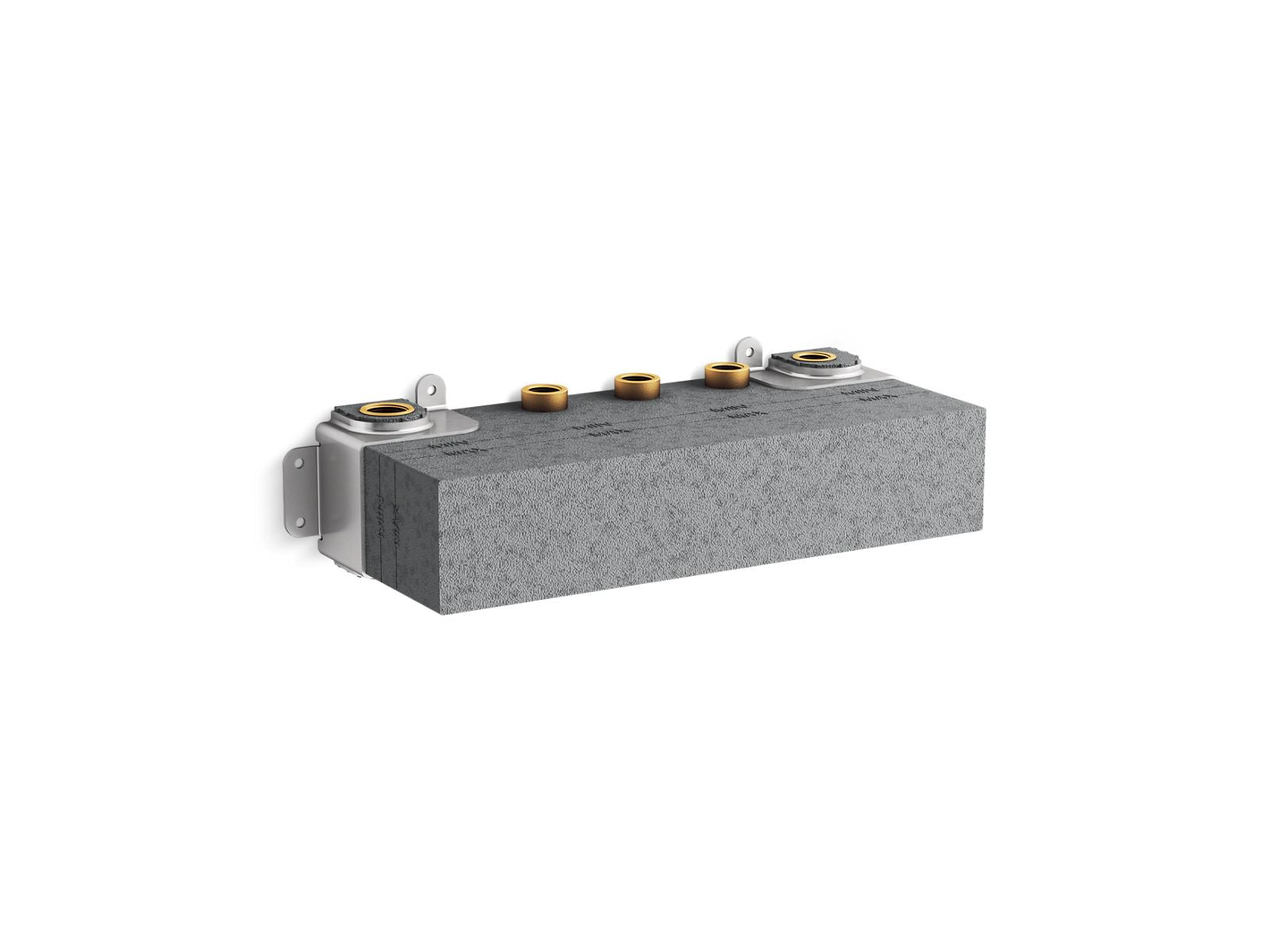

KOHLER Anthem Four-port recessed mechanical thermostatic valve

Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation, and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With four independently controllable ports, this valve is ideally suited for applications where up to four outlets are required.

• High-flow thermostatic mixing valve
Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experienceUp to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet3/4" female NPT inlet connections1/2" female NPT outlet connectionsService stops with integral filtersAntiscald protectionIntegrated adjustable high-temperature limit stop to control maximum water temperatureAdjustable comfort setting (preset at approximately 104°F)Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
