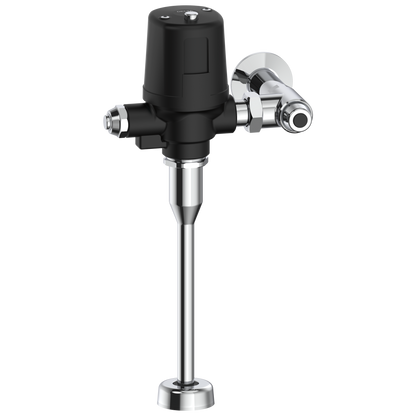

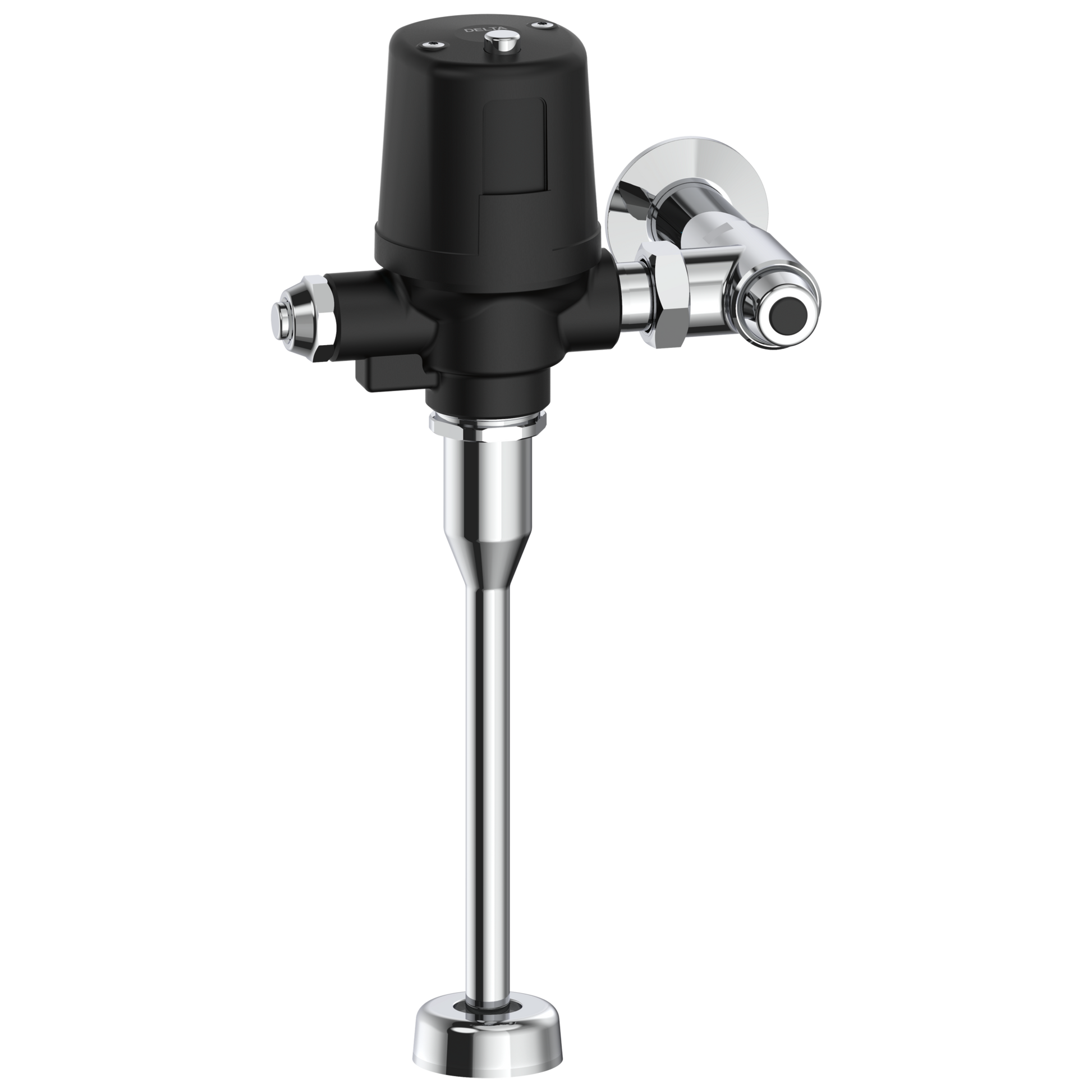

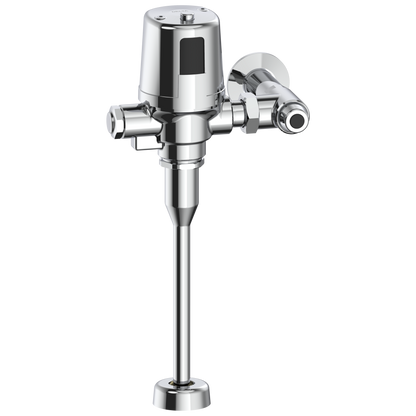

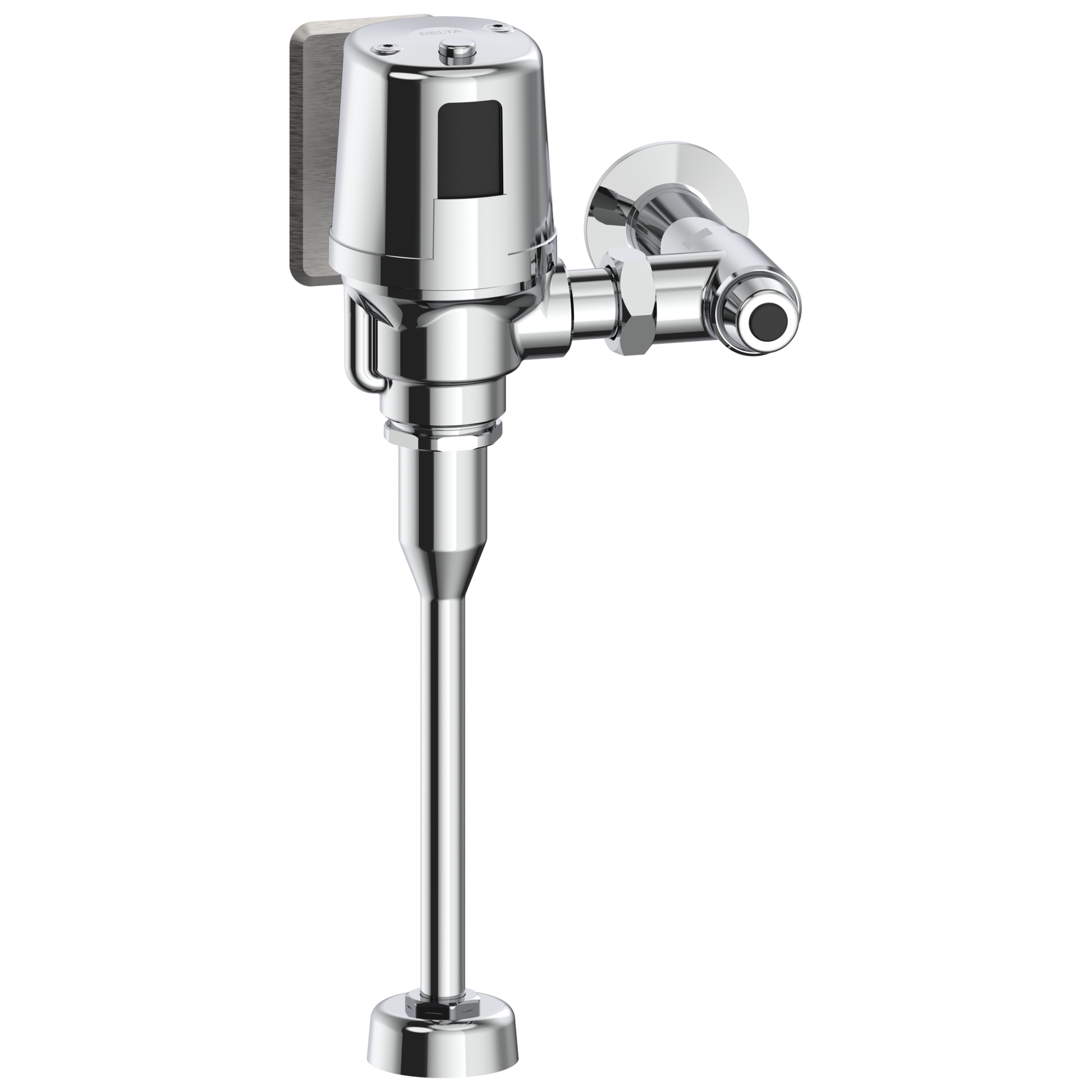

Commercial 81TBT / 81THW 81T231HWA Electronic Exposed Urinal Flush Valve - Hardwire Operated
Commercial 81TBT / 81THW 81T231HWA Electronic Exposed Urinal Flush Valve - Hardwire Operated
SKU:
SKU:81T231HWA
Regular price
$560.44
Regular price
$747.25
Sale price
$560.44
Unit price
/
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Electronic Exposed Urinal Flush Valve - Hardwire Operated
- Hardwire flush valve for 3/4" top spud flushing urinal with H2Optics® sensor on valve - maximum 13" height
- EZ Adjust® system allows flush volume adjustments with a simple turn of a screw.
- Electronic operated non-hold-open metal override button with 5 second lockout
- Scratch resistant replaceable lens window
- Infrared sensor range adjustment of 8-24"
- Set-up sensor range adjustment indicator lights
- 110 to 24 VAC transformer required (sold separately - 060704A or 060771A)
- Urinal, 13" height
- Hardwire models, order transformer separately
- Electronic exposed flush valve
- Hands-free operation
- Body mounted sensor
- Vacuum breaker
- 3/4" copper sweat inlet
- Weight: 9.5 lb
Additional Resources:
Specification Sheet
Installation Sheet
